| Description | Unit | Capacity |
|---|---|---|
| Swing Over bed | mm | 510 |
| Chuck dia. Max | mm | 210 |
| Max. Turning dia | mm | 320 |
| Max. Turning Length | mm | 310* |
| Admit between Centres | mm | 420 |
| Description | Unit | Specification |
|---|---|---|
| Spindle nose | type | A2-6 |
| Hole through spindle | mm | 61 |
| Spindle speed | rpm | 3000(3500) |
| Spindle motor power -15 min/Cont. | kW | 11/7.5(10.5 / 7) |

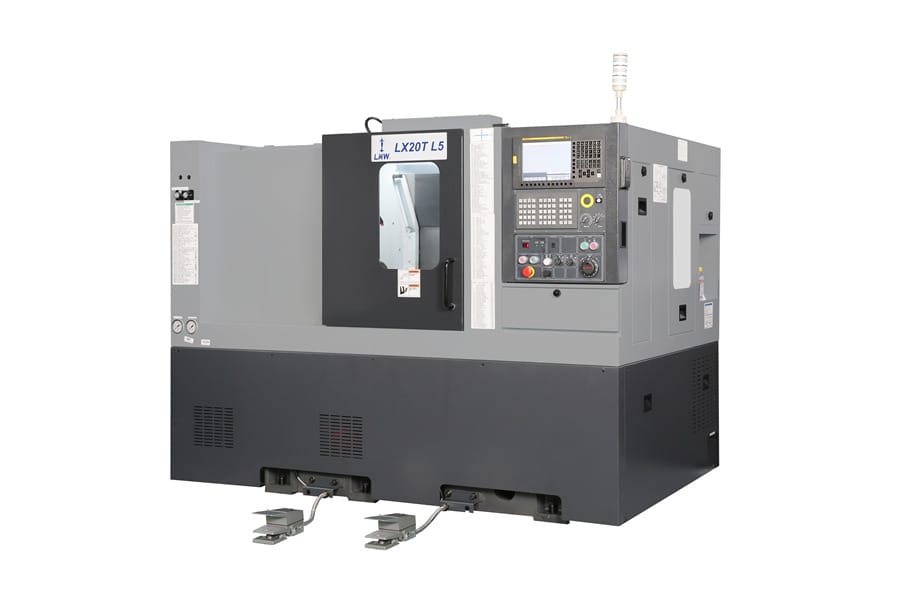

| Description | Unit | LX20T L3 | LX20T L5 |
|---|---|---|---|
| Swing over carriage | mm | 340 | 340 |
| Chuck dia, max. | mm | 200 | 200 |
| Interference free turning diameter | mm | 265 | 265 |
| Max. turning length | mm | 310 | 500 |
| Admit between centres | mm | 420 | 610 |
| Description | Unit | LX20T L3 | LX20T L5 |
|---|---|---|---|
| Spindle nose | type | A2 - 6 | A2 - 6 |
| Hole through spindle | mm | 61 | 61 |
| Spindle speed | rpm | 3500 | 3500 |
| Spindle motor power | kW | 11/7.5 | 11/7.5 |
| Cross travel X-axis | mm | 185 | 185 |
| Longitudinal travel Z-axis | mm | 370 | 560 |
| Rapid traverse rate X/Z-axes | m/min | 30 / 30 | 30 / 30 |

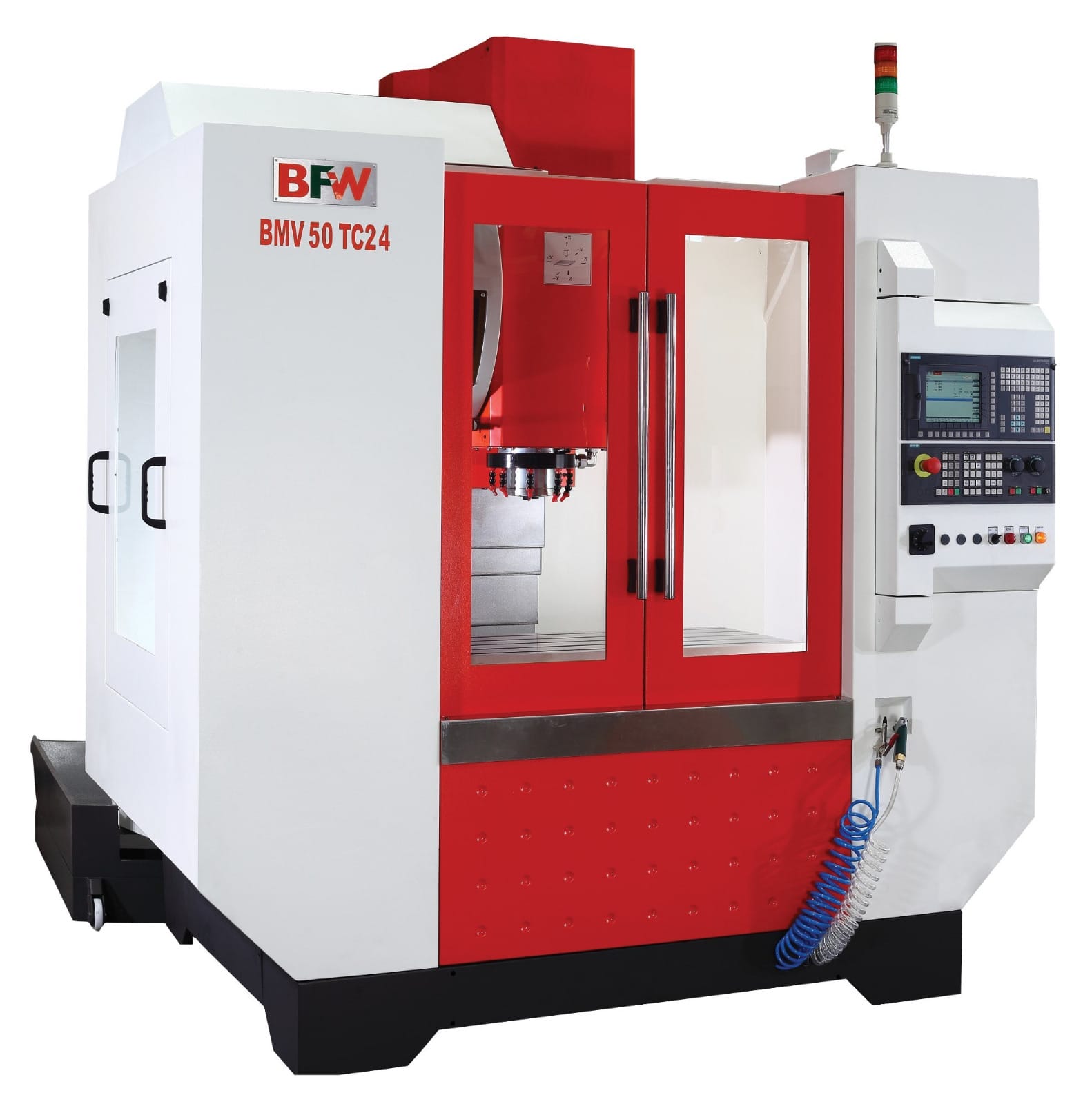

| Description | Unit | Capacity |
|---|---|---|
| Table longitudinal travel (X-Axis) | mm | 500 |
| Table cross travel (Y-Axis) | mm | 400 / 700 |
| Head stock travel (Z-Axis) | mm | 500 |
| Table size | mm x mm | 1000 x 450 |
| Max. load on table | Std./Opt. | 6000 |
| Spindle speed | Std. | 6000 |
Additional Feature
Rotary table dia 210mm with spindle through coolant
| Description | Unit | Capacity |
|---|---|---|
| Table longitudinal travel (X-Axis) | mm | 500 |
| Table cross travel (Y-Axis) | mm | 400 / 700 |
| Head stock travel (Z-Axis) | mm | 500 |
| Table size | mm x mm | 1000 x 450 |
| Max. load on table | Std./Opt. | 6000 |
| Spindle speed | Std. | 6000 |
Additional Feature
Rotary table dia 210mm with spindle through coolant
Precision tooling and maintenance for consistent production quality
Custom jigs and fixtures for enhanced manufacturing accuracy
Comprehensive quality control with precision measurement instruments
Our commitment to precision and quality in every component we manufacture
